Replacing a Ripped Cervix

Thank you so much for buying our products! We are here to support you and your simulated participants so your learners can get the most out of simulation. If none of these steps lead to success, feel free to reach out to our customer success team!

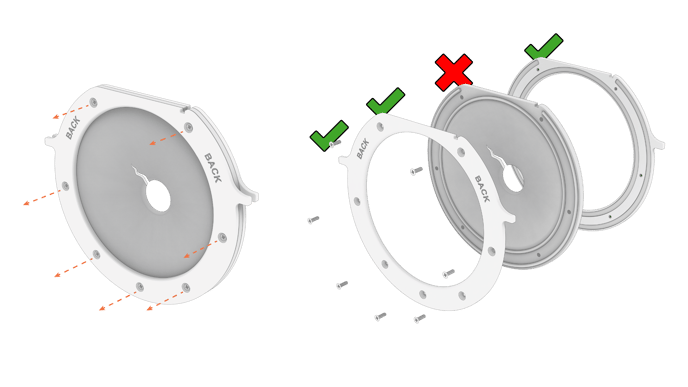

Title ImageLine Divider-SMALLTo remove the ripped cervix, unscrew all 7 screws. Discard the silicone cervix, but keep both black plastic rings and all screws.Image 1Line Divider-SMALLLocate the ring labeled “FRONT”. Flip it over so the label is no longer visible.Image 2

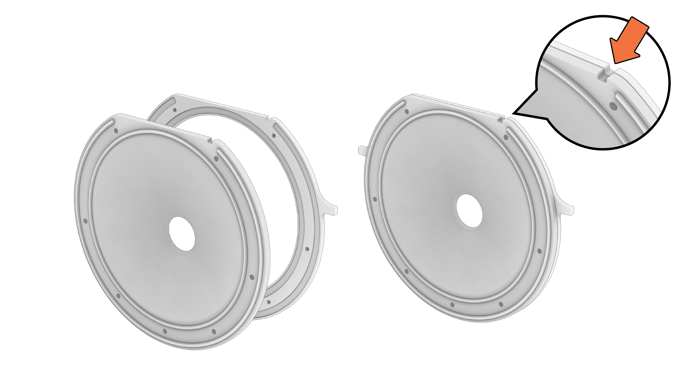

Line Divider-SMALLOrient the new silicone cervix so that the notch in the top corner is aligned with the notch on the front ring.Image 3

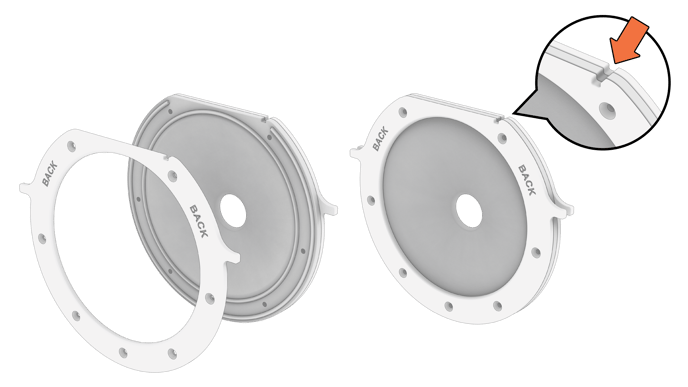

Line Divider-SMALLOrient the back ring so that the notch is aligned with both previous notches, and the “BACK” label is visible.Image 4

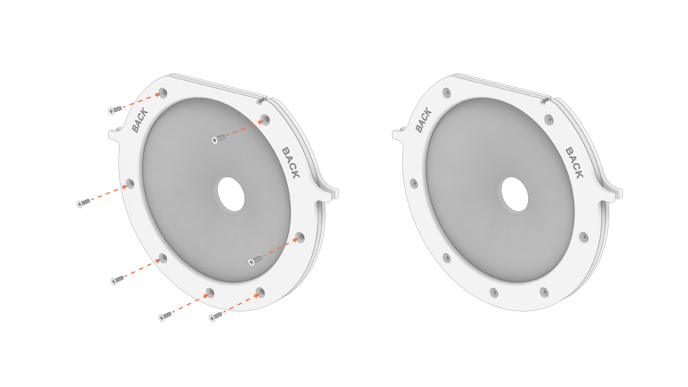

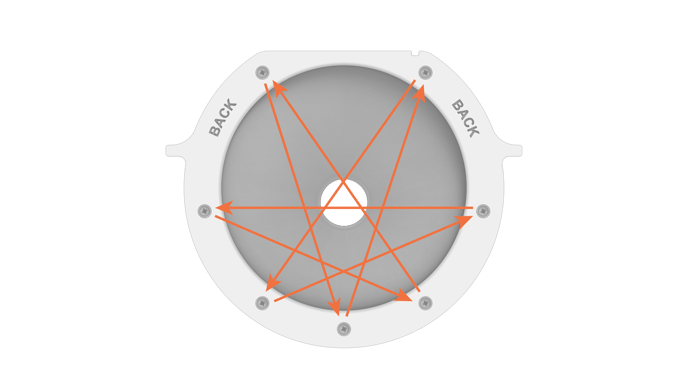

Line Divider-SMALLReplace all 7 screws. Do NOT fully tighten yet!Image 5Line Divider-SMALLOnce all 7 screws have been started, tighten each screw gradually using a star pattern. When the screw can just barely be felt on the front side of the assembly, stop tightening.Image 6

Line Divider-SMALL

End Image

If you have tried all these steps and are having trouble replacing a torn cervix please contact Avkin's Customer Support:

(302) 562-2040
